首頁歐美晶振 AEL晶振ELLS高品質晶振,AEL美國工業機器人晶振,ELLS-13.560MHz-18-R60-J-Q-F-T環保晶振

ELLS高品質晶振,AEL美國工業機器人晶振,ELLS-13.560MHz-18-R60-J-Q-F-T環保晶振

編號：8738536
頻率：13.56MHz

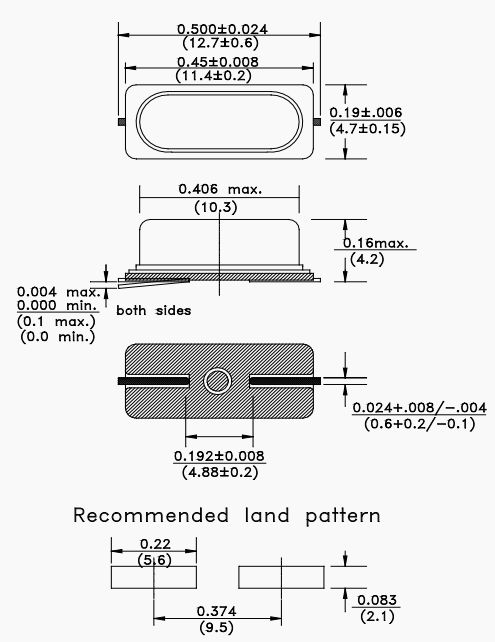

尺寸：12.7*4.7

ELLS高品質晶振,AEL美國工業機器人晶振,ELLS-13.560MHz-18-R60-J-Q-F-T環保晶振，AEL晶振，音叉晶振，無源晶振，美國AEL晶振公司，ELLS晶振，環保無鉛晶振，高穩定性晶振，石英晶振，ELLS-13.560MHz-18-R60-J-Q-F-T晶...

分享到

ELLS高品質晶振,AEL美國工業機器人晶振,ELLS-13.560MHz-18-R60-J-Q-F-T環保晶振，AEL晶振，音叉晶振，無源晶振，美國AEL晶振公司，ELLS晶振，環保無鉛晶振，高穩定性晶振，石英晶振，ELLS-13.560MHz-18-R60-J-Q-F-T晶振，49SMD晶振，二腳晶振，高精度晶振，高質量晶振，貼片晶振，無源晶振，歐美晶振，小型晶振，汽車收音機晶振，車載多媒體晶振，工業設備晶振，醫療設備晶振，低損耗晶振。特點:SMD石英晶體諧振器，公差:±10ppm，工作溫度0°C至+70°C至-55°C至+125°C。

ELLS高品質晶振,AEL美國工業機器人晶振,ELLS-13.560MHz-18-R60-J-Q-F-T環保晶振

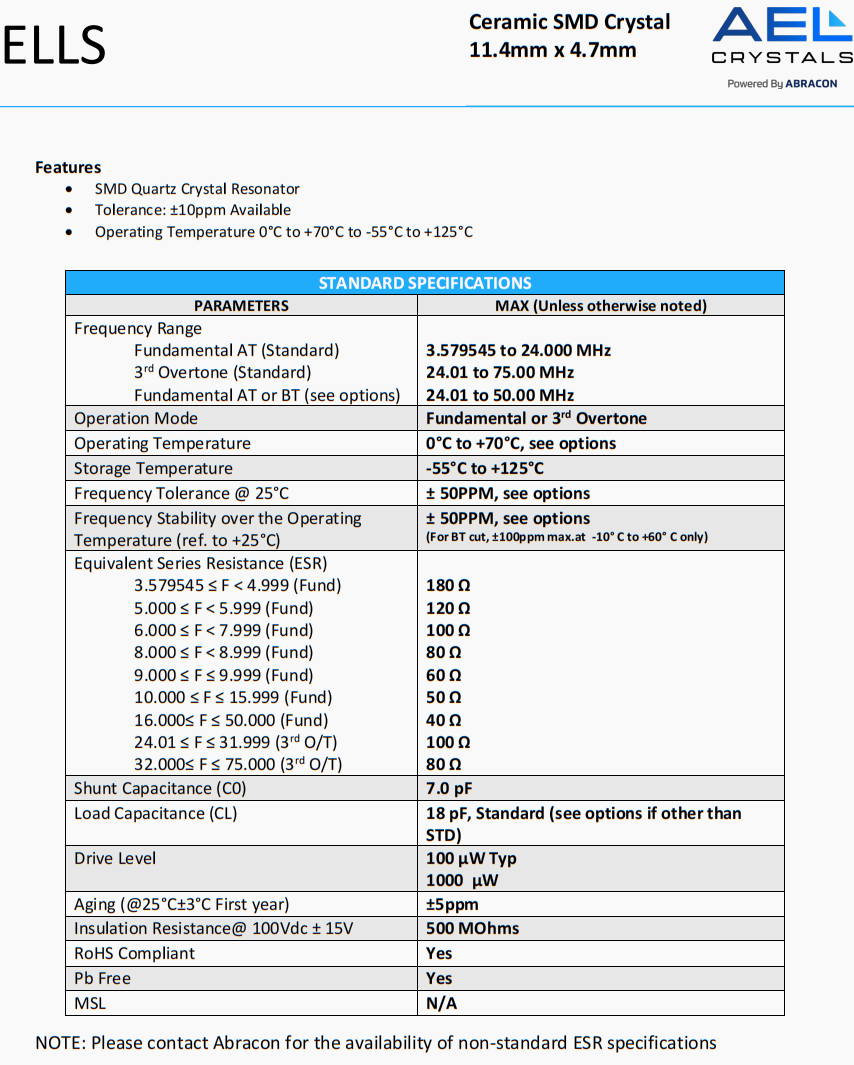

參數	MAX (Unless otherwise noted)
頻率	10MHz
工作模式	Fundamental or 3rd Overtone
工作溫度	0°C to +70°C, see options
儲存溫度	-55°C to +125°C
頻率容差	± 50PPM, see options
溫度范圍內的頻率穩定度	± 50PPM, see options(For BT cut, ±100ppm max.at -10° C to +60° C only)
分流電容	7.0 pF
負載電容	18 pF, Standard (see options if other than STD)
驅動電平	100 μWTyp 1000 μW
老化	±5ppm
絕緣電阻	500 MOhms
符合ROHS	Yes
無鉛	Yes
MSL	N/A

ELLS高品質晶振,AEL美國工業機器人晶振,ELLS-13.560MHz-18-R60-J-Q-F-T環保晶振

編碼	品牌	型號	頻率	頻率穩定度	頻率容差	負載電容
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL Crystals	ELLS	10 MHz	±100ppm	±50ppm	20 pF
ELLS-12.000MHz-18-R60-A-4-F-T	AEL Crystals	ELLS	12 MHz	±50ppm	±30ppm	18 pF
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL Crystals	ELLS	13.56 MHz	±30ppm	±30ppm	10 pF
ELLS-30.000MHz-10-R50-B1U-F-T	AEL Crystals	ELLS	30 MHz	±10ppm	±10ppm	10 pF
ELLS-4.000MHz-16-R120-A4-F-T	AEL Crystals	ELLS	4 MHz	±50ppm	±30ppm	16 pF
ELLS-4.000MHz-16-R120-B1X-F-T	AEL Crystals	ELLS	4 MHz	±20ppm	±10ppm	16 pF
ELLS-4.000MHz-30-R120-D4-F-T	AEL Crystals	ELLS	4 MHz	±50ppm	±30ppm	30 pF
ELLS-8.000MHz-16-R45-D4-F-T	AEL Crystals	ELLS	8 MHz	±50ppm	±30ppm	16 pF
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	ELM10	16 MHz	±20ppm	±20ppm	8 pF
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	ELM10	24 MHz	±15ppm	±10ppm	16 pF
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	ELM11	32 MHz	±20ppm	±10ppm	10 pF
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	ELM12W	24 MHz	±20ppm	±15ppm	6 pF
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	ELM3	12 MHz	±30ppm	±30ppm	30 pF
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	ELM3	14 MHz	±50ppm	±50ppm	30 pF
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	ELM3	24 MHz	±50ppm	±30ppm	18 pF
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	ELM3	8.057 MHz	±30ppm	±30ppm	18 pF
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	ELM8	12 MHz	±30ppm	±30ppm	10 pF
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	ELM8	12.5829 MHz	±10ppm	±10ppm	16 pF
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	ELM8	14.8 MHz	±10ppm	±10ppm	16 pF
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	ELM8	18.432 MHz	±100ppm	±100ppm	16 pF
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	ELM8	24 MHz	±25ppm	±10ppm	10 pF
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	ELM8	24 MHz	±10ppm	±10ppm	18 pF
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	ELM8	24 MHz	±10ppm	±10ppm	9 pF
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	ELM8	26 MHz	±10ppm	±10ppm	18 pF
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	ELM8	32 MHz	±10ppm	±10ppm	16 pF
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	ELM8	32 MHz	±15ppm	±10ppm	9 pF
ELS05-32.768kHz-9-T	AEL Crystals	ELS05	32.768 kHz		±20ppm	9 pF
ELS06-32.768kHz-9-T	AEL Crystals	ELS06	32.768 kHz		±20ppm	9 pF
ELS07-32.768kHz-6-T	AEL Crystals	ELS07	32.768 kHz	0	±20ppm	6 pF
ELS07-32.768kHz-T	AEL Crystals	ELS07	32.768 kHz	0	±20ppm	12.5 pF
ELS13-32.768kHz-7-T	AEL Crystals	ELS13	32.768 kHz	0	±20ppm	7 pF
ELS13-32.768kHz-7-T	AEL Crystals	ELS13	32.768 kHz	0	±20ppm	7 pF
ELS13-32.768kHz-9-T	AEL Crystals	ELS13	32.768 kHz	±-0.034ppm	±20ppm	9 pF
ELS13-32.768kHz-T	AEL Crystals	ELS13	32.768 kHz	0	±20ppm	12.5 pF
ELS13-32.768kHz-T	AEL Crystals	ELS13	32.768 kHz	0	±20ppm	12.5 pF
ELS25-32.768kHz-6-2-T	AEL Crystals	ELS25	32.768 kHz	±0.035ppm	±20ppm	6 pF
ELS25-32.768kHz-T	AEL Crystals	ELS25	32.768 kHz	0	±20ppm	12.5 pF
ELS25-32.768kHz-T	AEL Crystals	ELS25	32.768 kHz	0	±20ppm	12.5 pF
