首頁歐美晶振 ConnorWinfield晶振CS-044-054.0M,6G無線網絡晶振,ConnorWinfield進口晶體

CS-044-054.0M,6G無線網絡晶振,ConnorWinfield進口晶體

編號：19262884
頻率：54MHz
尺寸：3.2×2.5mm

CS-044無源晶振,CS-044-054.0M晶振,ConnorWinfield進口晶體,3225mm晶振,小體積晶振,頻率54MHz,工作溫度-40~85°C,負載8pF,頻率穩定性25ppm,高品質晶振,無鉛環保晶振,6G無線網絡晶振,網絡設備晶振,數碼電子晶振,智能家...

分享到

CS-044-054.0M,6G無線網絡晶振,ConnorWinfield進口晶體 , CS-044無源晶振,CS-044-054.0M晶振,ConnorWinfield進口晶體,3225mm晶振,小體積晶振,頻率54MHz,工作溫度-40~85°C,負載8pF,頻率穩定性25ppm,高品質晶振,無鉛環保晶振,6G無線網絡晶振,網絡設備晶振,數碼電子晶振,智能家居晶振,智能穿戴晶振.
CS-044-054.0M,6G無線網絡晶振,ConnorWinfield進口晶體特點：
●頻率：54MHz
●工作溫度-40ºC ~ +85ºC
●頻率公差：±15ppm
●頻率穩定性：±25ppm
●表面貼裝封裝
●膠帶和卷軸包裝
●無鉛,符合RoHS標準

CS-044-054.0M,6G無線網絡晶振,ConnorWinfield進口晶體參數表

項目	規格說明
額定頻率	54MHz
頻率公差 @ 25ºC	±15 ppm
頻率穩定性與溫度變化的關系	±25 ppm
工作溫度	-40~85°C
操作模式	Fundamenta
切割	AT Cut
老化	±1ppm/Year
負載:(CL）	8pF
等效串聯電阻@ 25 °C	20 Ohms max.
驅動電平	200 uW Max
絕緣電阻	500 Mohm
儲存溫度	-40~95°C

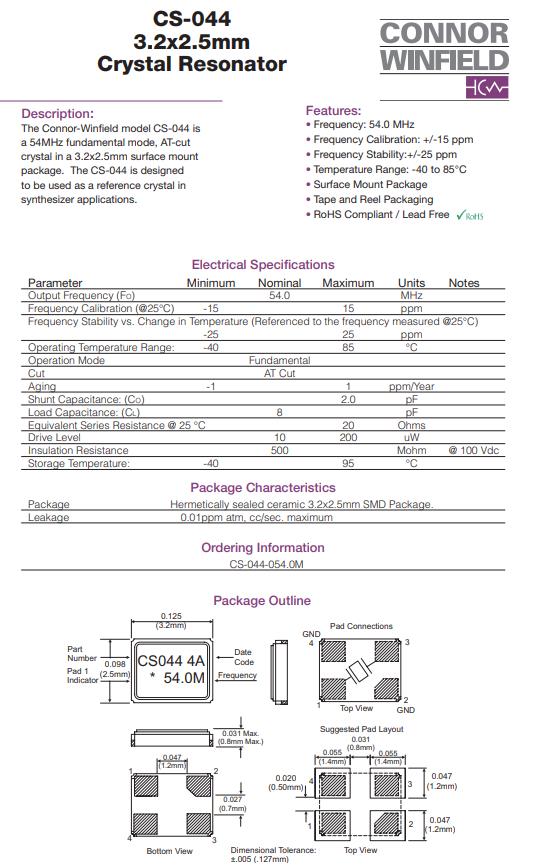

CS-044-054.0M,6G無線網絡晶振,ConnorWinfield進口晶體尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
CS-018-114.285MHZ	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
