首頁歐美晶振 ConnorWinfield晶振XM-1-010.0M,6G無線網絡晶振,無鉛石英晶體諧振器

XM-1-010.0M,6G無線網絡晶振,無鉛石英晶體諧振器

編號：4480100
頻率：10MHz
尺寸：7.0×5.0mm

ConnorWinfield晶振,XM-1無源晶振,XM-1-010.0M晶振,石英晶體諧振器,7050mm晶振,頻率10MHz,工作溫度-10~60°C,負載16pF,頻率穩定性50ppm,無鉛環保晶振,高穩定性晶振,6G無線網絡晶振,家電影音系統晶振,藍牙耳機晶振,智能...

分享到

XM-1-010.0M,6G無線網絡晶振,無鉛石英晶體諧振器,ConnorWinfield晶振,XM-1無源晶振,XM-1-010.0M晶振,石英晶體諧振器,7050mm晶振,頻率10MHz,工作溫度-10~60°C,負載16pF,頻率穩定性50ppm,無鉛環保晶振,高穩定性晶振,6G無線網絡晶振,家電影音系統晶振,藍牙耳機晶振,智能家居應用晶振,電信交換機晶振.
XM-1-010.0M,6G無線網絡晶振,無鉛石英晶體諧振器特點：
25°C時的頻率校準:+/-50 ppm
頻率穩定性:+/-50 ppm
溫度范圍:-10至60攝氏度
膠帶和卷軸包裝
符合RoHS標準/無鉛

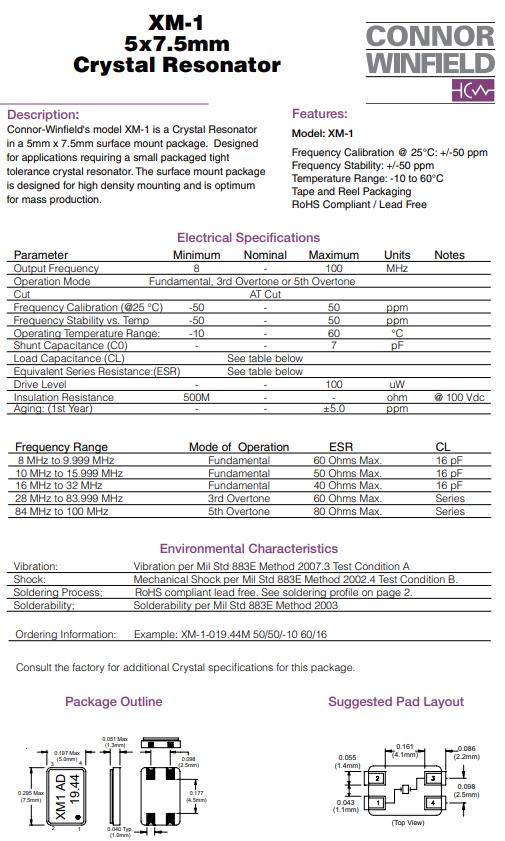

XM-1-010.0M,6G無線網絡晶振,無鉛石英晶體諧振器 參數表

項目	規格說明
額定頻率	10MHz
頻率公差 @ 25ºC	±50 ppm
頻率穩定性與溫度變化的關系	±50 ppm
工作溫度	-10~+60°C
并聯電容	7pF Max
老化	±5ppm/Year
負載:(CL）	16pF
等效串聯電阻@ 25 °C	50 Ohms max.
驅動電平	100 uW Typ
絕緣電阻	500 Mohm
儲存溫度	-55~125°C

XM-1-010.0M,6G無線網絡晶振,無鉛石英晶體諧振器 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
CS-018-114.285MHZ	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
