首頁進口晶振愛普生晶振X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振

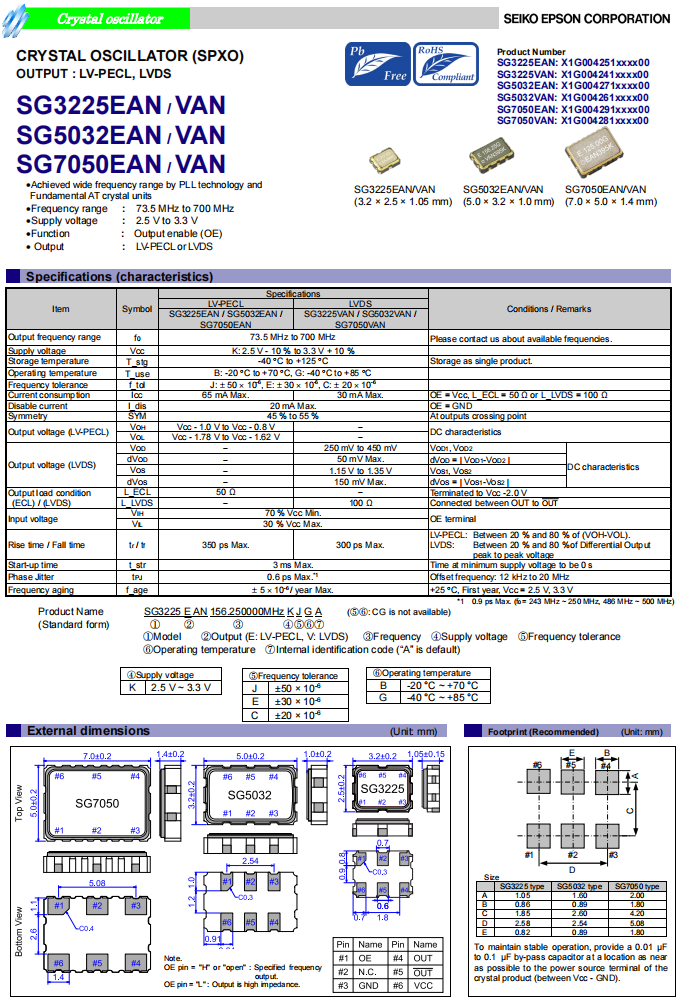

X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振

編號：91053632
頻率：74.25MHz
尺寸：3.2×2.5×1.05 mm

日本愛普生晶振,X1G0042510029晶振,SG3225EAN石英晶體振蕩器,差分貼片晶振,進口有源晶振,LVDS輸出晶振,3225mm貼片晶振,頻率74.25MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性50ppm,網絡交換機晶振,路由器晶振,SATA晶振...

分享到

X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振 ,日本愛普生晶振,X1G0042510029晶振,SG3225EAN石英晶體振蕩器,差分貼片晶振,進口有源晶振,LVDS輸出晶振,3225mm貼片晶振,頻率74.25MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性50ppm,網絡交換機晶振,路由器晶振,SATA晶振,電信交換機晶振,便攜式多媒體設備晶振.
X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振特點：
●通過鎖相環技術實現了寬頻率范圍和基本AT晶體單位

●頻率范圍:73.5 MHz至700 MHz

●電源電壓:2.5 V至3.3 V

●功能:輸出使能(OE)

●輸出:LV-PECL或LVDS

X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振參數表

項目	符號	規格說明	條件
額定頻率	f_nom	74.25MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	3.3V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率公差（標準）	f_tol	±50 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗	f_tem	30mA Max	OE = Vcc,L_LVDS = 100 Ω
禁用電流	I_dis	20mA Max	OE=GND
對稱性（占空比）	SYM	45%~55%	在輸出交叉點
輸出電壓	VOD	250mV to 450mV	DC characteristics
輸出電壓	VOS	1.15V to 1.35V	DC characteristics
輸出負載條件	L_LVDS	100Ω	Connected between OUT and OUT
輸入電壓	VIH	70%Vcc Min	OE or ST terminal
輸入電壓	VIL	30%Vcc Max	OE or ST terminal
上升下降時間	tr/tf	300ps Max	Between 20 % and 80 %of Differential Output peak to peak voltage
起始時間	t str	3ms Max	Time at minimum supply voltage to be 0
相位抖動	tpj	0.6ps Max	Offset frequency: 12 kHz to 20 MHz
老化	f_age	± 5 ×10-6 / year Max	+25 °C, First year, VCC = 2.5 V, 3.3 V

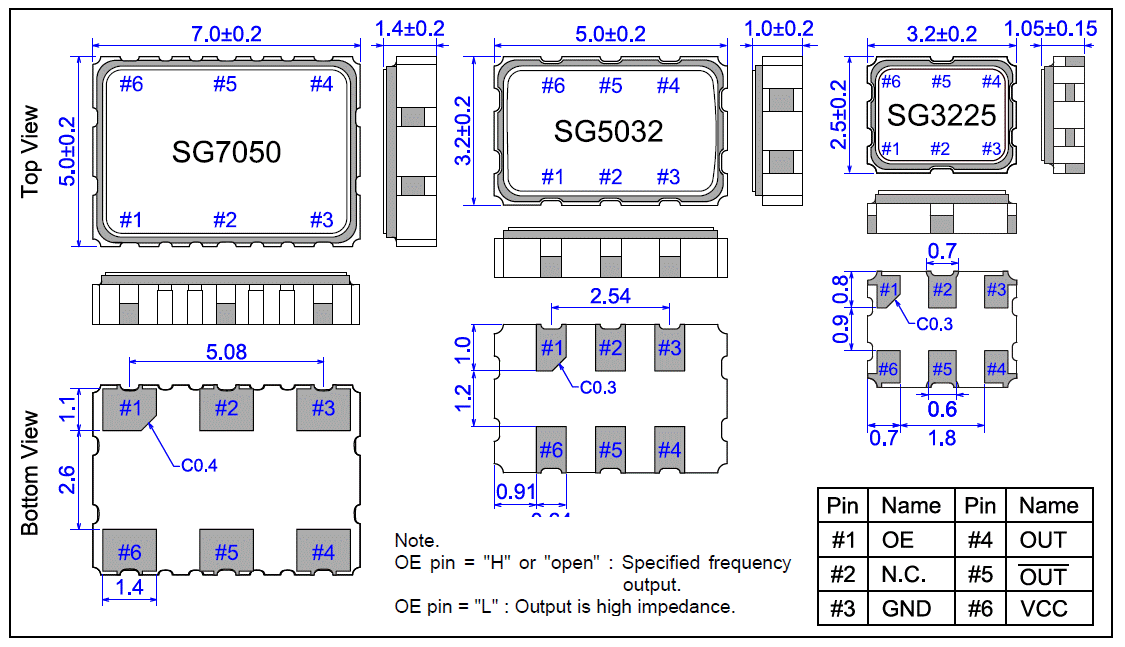

X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振 尺寸圖

編碼	型號	頻率	LxWxH/尺寸	輸出方式	電源電壓	工作溫度
X1G0042410001	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410002	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410004	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410005	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410006	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410007	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410008	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410009	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410010	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410011	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410012	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410014	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410015	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410016	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410017	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410020	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410021	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410023	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410024	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410025	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410026	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410027	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410028	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410029	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410030	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410031	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410033	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410034	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410035	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410036	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410039	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410040	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410042	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410043	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410044	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410045	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410046	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410047	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410048	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410049	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410050	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410052	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410053	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410054	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410055	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410058	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410059	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410061	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410062	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410063	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410064	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410065	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410066	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410067	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410068	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410069	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410071	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410072	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410073	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410074	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410079	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410080	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410083	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410084	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410087	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410088	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410092	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410100	SG3225VAN	133.333333 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410101	SG3225VAN	148.350000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410102	SG3225VAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410103	SG3225VAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410104	SG3225VAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410105	SG3225VAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410106	SG3225VAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410108	SG3225VAN	297.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042510001	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510002	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510003	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510004	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510006	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510007	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510008	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510009	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510010	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510011	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510012	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510013	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510014	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510015	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510016	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510017	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510018	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510021	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510022	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510024	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510025	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510026	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510027	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510028	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510029	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510036	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510037	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510039	SG3225EAN	700.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510040	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510041	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510043	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510044	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510045	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510046	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510047	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510048	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510049	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510050	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510051	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510053	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510054	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510055	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510056	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510059	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510060	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510062	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510063	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510064	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510065	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510066	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510067	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510068	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510069	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510070	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510072	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510073	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510074	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510079	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510080	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510083	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510084	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510087	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510088	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510091	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510092	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510100	SG3225EAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510103	SG3225EAN	644.531200 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510104	SG3225EAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510105	SG3225EAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510106	SG3225EAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510107	SG3225EAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510111	SG3225EAN	133.330000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510112	SG3225EAN	144.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510113	SG3225EAN	174.703100 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510114	SG3225EAN	320.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510115	SG3225EAN	500.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510121	SG3225EAN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受到專業的銷售團隊,耐心為您解答任何疑問,讓您的
前所未有的后顧無憂. 消費得到保障.
3.質量保證，誠信為上 4.提升業績,降低成本
我司以“以科技為動力，以質量求生存”為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
