首頁臺產晶振臺灣鴻星晶體臺灣鴻星晶振,E49A27E00000ME,6G低成本晶振

臺灣鴻星晶振,E49A27E00000ME,6G低成本晶振

編號：37398416
頻率：27MHz
尺寸：11.05×4.65mm

臺灣鴻星晶振,E49A插件晶振,E49A27E00000ME晶振,石英晶體諧振器,進口無源晶振,頻率27MHz,負載20pF,工作溫度-20~70°C,頻率穩定性30ppm,6G低成本晶振,高穩定性晶振,DVD家電影音系統晶振,攝像頭晶振,儲存卡晶振,電視機頂...

分享到

臺灣鴻星晶振,E49A27E00000ME,6G低成本晶振,臺灣鴻星晶振,E49A插件晶振,E49A27E00000ME晶振,石英晶體諧振器,進口無源晶振,頻率27MHz,負載20pF,工作溫度-20~70°C,頻率穩定性30ppm,6G低成本晶振,高穩定性晶振,DVD家電影音系統晶振,攝像頭晶振,儲存卡晶振,電視機頂盒晶振.

臺灣鴻星晶振,E49A27E00000ME,6G低成本晶振特點：
•微型AT切割條形晶體單位
•工業標準，低姿態的包裝
•寬頻率范圍，采用電阻焊

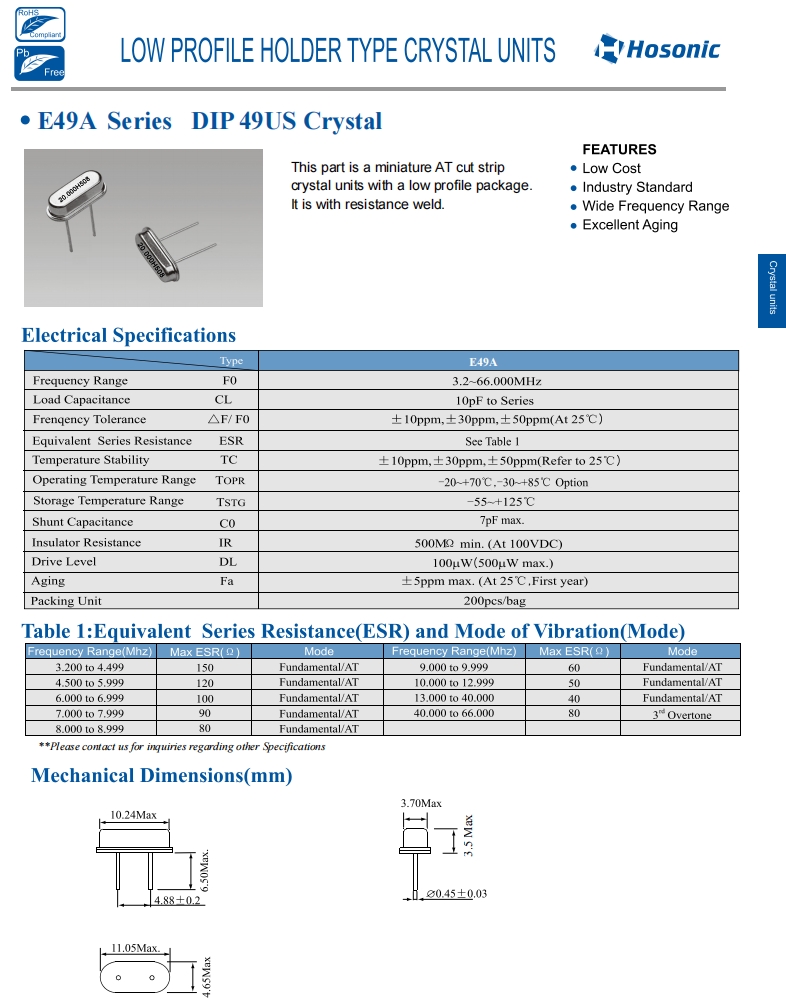

臺灣鴻星晶振,E49A27E00000ME,6G低成本晶振參數表

項目	符號	E49A
頻率	f0	27MHz
頻率公差	△ f/f0	±30ppm
溫度穩定性	TC	±30ppm
負載電容	CL	20pF
工作溫度	TOPR	－20℃～＋70℃
保存溫度	TSTR	－55℃～＋125℃
串聯阻力	R1	40Ω Max
驅動級別	DL	500μW Max
老化（第一年）	△ f/f0	±5ppm Max.

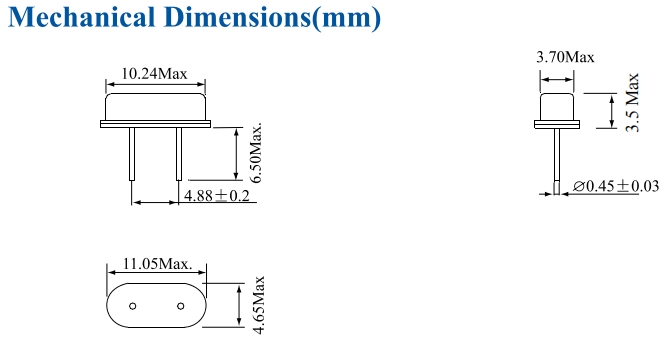

臺灣鴻星晶振,E49A27E00000ME,6G低成本晶振尺寸圖

原廠編碼	制造廠家	型號	頻率	負載電容	頻率容差	頻率穩定度
E49A12E00000ME	Hosonic晶振	E49A	12 MHz	20 pF	±30 ppm	±30 ppm
E49A13E00000ME	Hosonic晶振	E49A	13 MHz	20 pF	±30 ppm	±30 ppm
E49A14E00000ME	Hosonic晶振	E49A	14 MHz	20 pF	±30 ppm	±30 ppm
E49A15E00000ME	Hosonic晶振	E49A	15 MHz	20 pF	±30 ppm	±30 ppm
E49A16E00000ME	Hosonic晶振	E49A	16 MHz	20 pF	±30 ppm	±30 ppm
E49A17E00000ME	Hosonic晶振	E49A	17 MHz	20 pF	±30 ppm	±30 ppm
E49A18E00000ME	Hosonic晶振	E49A	18 MHz	20 pF	±30 ppm	±30 ppm
E49A19E00000ME	Hosonic晶振	E49A	19 MHz	20 pF	±30 ppm	±30 ppm
E49A20E00000ME	Hosonic晶振	E49A	20 MHz	20 pF	±30 ppm	±30 ppm
E49A21E00000ME	Hosonic晶振	E49A	21 MHz	20 pF	±30 ppm	±30 ppm
E49A22E00000ME	Hosonic晶振	E49A	22 MHz	20 pF	±30 ppm	±30 ppm
E49A23E00000ME	Hosonic晶振	E49A	23 MHz	20 pF	±30 ppm	±30 ppm
E49A24E00000ME	Hosonic晶振	E49A	24 MHz	20 pF	±30 ppm	±30 ppm
E49A25E00000ME	Hosonic晶振	E49A	25 MHz	20 pF	±30 ppm	±30 ppm
E49A26E00000ME	Hosonic晶振	E49A	26 MHz	20 pF	±30 ppm	±30 ppm
E49A27E00000ME	Hosonic晶振	E49A	27 MHz	20 pF	±30 ppm	±30 ppm
E49A28E00000ME	Hosonic晶振	E49A	28 MHz	20 pF	±30 ppm	±30 ppm
E49A29E00000ME	Hosonic晶振	E49A	29 MHz	20 pF	±30 ppm	±30 ppm
E49A30E00000ME	Hosonic晶振	E49A	30 MHz	20 pF	±30 ppm	±30 ppm
E49A31E00000ME	Hosonic晶振	E49A	31 MHz	20 pF	±30 ppm	±30 ppm
E49A32E00000ME	Hosonic晶振	E49A	32 MHz	20 pF	±30 ppm	±30 ppm
E49A33E00000ME	Hosonic晶振	E49A	33 MHz	20 pF	±30 ppm	±30 ppm
E49A34E00000ME	Hosonic晶振	E49A	34 MHz	20 pF	±30 ppm	±30 ppm
E49A35E00000ME	Hosonic晶振	E49A	35 MHz	20 pF	±30 ppm	±30 ppm
E49A36E00000ME	Hosonic晶振	E49A	36 MHz	20 pF	±30 ppm	±30 ppm
E49A37E00000ME	Hosonic晶振	E49A	37 MHz	20 pF	±30 ppm	±30 ppm
E49A38E00000ME	Hosonic晶振	E49A	38 MHz	20 pF	±30 ppm	±30 ppm
E49A39E00000ME	Hosonic晶振	E49A	39 MHz	20 pF	±30 ppm	±30 ppm
E49A40E00000ME	Hosonic晶振	E49A	40 MHz	20 pF	±30 ppm	±30 ppm
E49A41E00000ME	Hosonic晶振	E49A	41 MHz	20 pF	±30 ppm	±30 ppm
E49A42E00000ME	Hosonic晶振	E49A	42 MHz	20 pF	±30 ppm	±30 ppm
E49A43E00000ME	Hosonic晶振	E49A	43 MHz	20 pF	±30 ppm	±30 ppm
E49A44E00000ME	Hosonic晶振	E49A	44 MHz	20 pF	±30 ppm	±30 ppm
E49A45E00000ME	Hosonic晶振	E49A	45 MHz	20 pF	±30 ppm	±30 ppm
E49A46E00000ME	Hosonic晶振	E49A	46 MHz	20 pF	±30 ppm	±30 ppm
E49A47E00000ME	Hosonic晶振	E49A	47 MHz	20 pF	±30 ppm	±30 ppm
E49A48E00000ME	Hosonic晶振	E49A	48 MHz	20 pF	±30 ppm	±30 ppm
E49A49E00000ME	Hosonic晶振	E49A	49 MHz	20 pF	±30 ppm	±30 ppm
E49A50E00000ME	Hosonic晶振	E49A	50 MHz	20 pF	±30 ppm	±30 ppm
E49A51E00000ME	Hosonic晶振	E49A	51 MHz	20 pF	±30 ppm	±30 ppm
E49A52E00000ME	Hosonic晶振	E49A	52 MHz	20 pF	±30 ppm	±30 ppm
E49A53E00000ME	Hosonic晶振	E49A	53 MHz	20 pF	±30 ppm	±30 ppm
E49A54E00000ME	Hosonic晶振	E49A	54 MHz	20 pF	±30 ppm	±30 ppm
E49A55E00000ME	Hosonic晶振	E49A	55 MHz	20 pF	±30 ppm	±30 ppm
E49A56E00000ME	Hosonic晶振	E49A	56 MHz	20 pF	±30 ppm	±30 ppm
E49A57E00000ME	Hosonic晶振	E49A	57 MHz	20 pF	±30 ppm	±30 ppm
