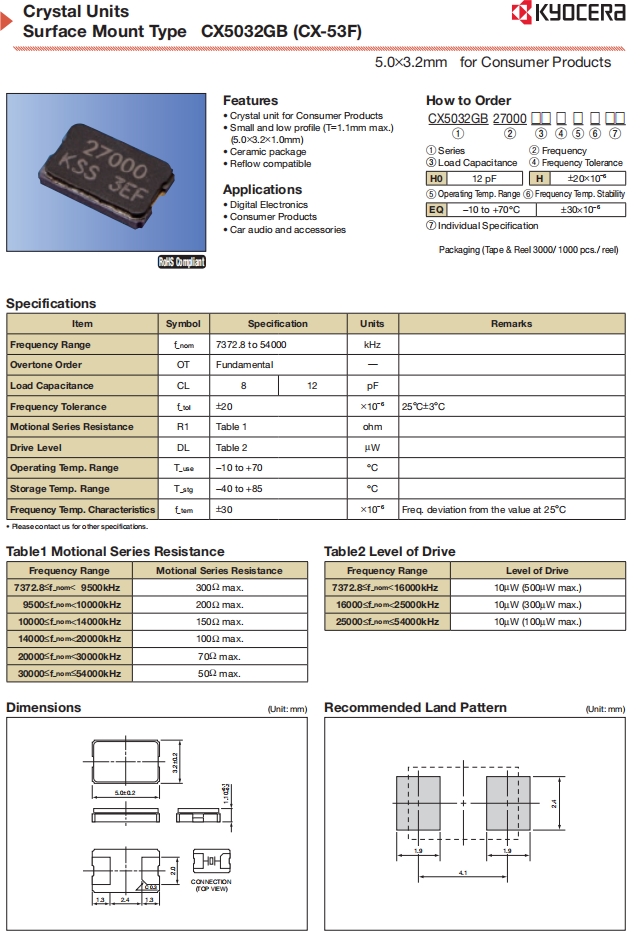

首頁進口晶振京瓷晶振CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ

編號：49651259
頻率：8MHZ
尺寸：5.0*3.2mm

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ，尺寸為5032mm,頻率為8MHZ，日本京瓷晶振，Kyocera晶振，日本進口晶振，貼片晶振，無源晶體，水晶振動子，音叉晶體，無源貼片晶振，陶瓷晶振，無源諧振器...

分享到

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ，尺寸為5032mm,頻率為8MHZ，日本京瓷晶振，Kyocera晶振，日本進口晶振，貼片晶振，無源晶體，水晶振動子，音叉晶體，無源貼片晶振，陶瓷晶振，無源諧振器，汽車音響專用晶振，數字電子專用晶振，小型設備晶振，消費品專用晶振，汽車配件晶振。
5032陶瓷面諧振器產品主要應用程序：數字電子，消費品，汽車音響及配件，通信產品，無線設備等領域。CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ.

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ 參數表

Item

Symbol

Specification

Units

Remarks

Frequency Range

f_nom

7372.8 to 54000

kHz

Overtone Order

Fundamental

―

Load Capacitance

Frequency Tolerance

f_tol

±20

× 10-6

25°C±3°C

Motional Series Resistance

Table 1

ohm

Drive Level

Table 2

Operating Temp. Range

T_use

-10 to +70

°C

Storage Temp. Range

T_stg

-40 to +85

°C

Frequency Temp. Characteristics

f_tem

±30

× 10-6

Freq. deviation from the value at 25°C

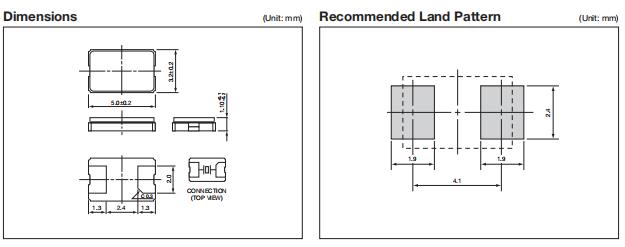

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ 尺寸圖

特征：

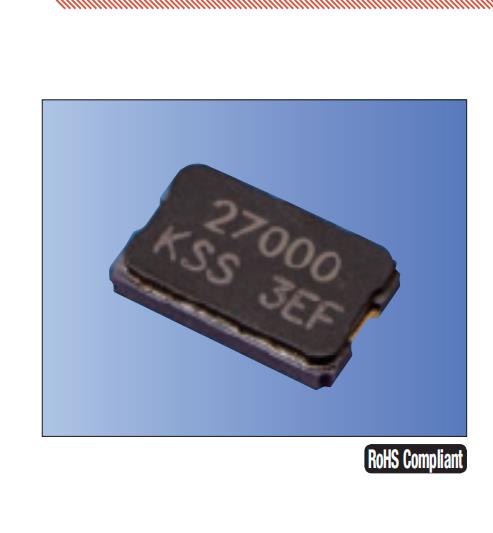

•水晶單位的消費產品

•小而低調(T=1.1mm max.)

(5.0×3.2×1.0毫米)

•陶瓷封裝

•回流兼容

更多相關日本京瓷晶振型號

原廠編碼	廠家	型號	系列	頻率	工作溫度
CX5032GA08000H0PST02	AVX Corp/Kyocera Corp	CX5032GA, Kyocera	MHz Crystal	8MHz	-40°C ~ 125°C
CX5032GB10000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	10MHz	-10°C ~ 70°C
CX5032GB16000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX5032GB20000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	20MHz	-10°C ~ 70°C
CX5032GB12000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX5032GB27000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX5032GB14318H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	14.31818MHz	-10°C ~ 70°C
CX2520SB24000D0PESZZ	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX-96F-040.000-E0107	AVX Corp/Kyocera Corp	CX5032SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX5032GB16000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX5032GB08000H0HPQZ1	京瓷晶振	CX5032GB, Kyocera	MHz Crystal	8MHz	-40°C ~ 85°C
CX5032GB10000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX5032GB14745H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	14.7456MHz	-10°C ~ 70°C
CX5032GB24576H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2520SB13560D0GEJCC	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	-10°C ~ 85°C
CX5032GB08000H0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	8MHz	-10°C ~ 70°C
CX5032GB12000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	12MHz	-10°C ~ 70°C
CX5032SA08000H0PSVZ1	AVX Corp/Kyocera Corp	CX5032SA, Kyocera	MHz Crystal	8MHz	-40°C ~ 125°C
CX5032GB19200P0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	19.2MHz	-10°C ~ 70°C
CX2520SB13560D0GEJZ1	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
