MMD音叉晶振,WC146SM進口7015晶振,WC146SMF-32.768KHZ-T智能計時器晶振

編號：67400083
頻率：32.768KHz

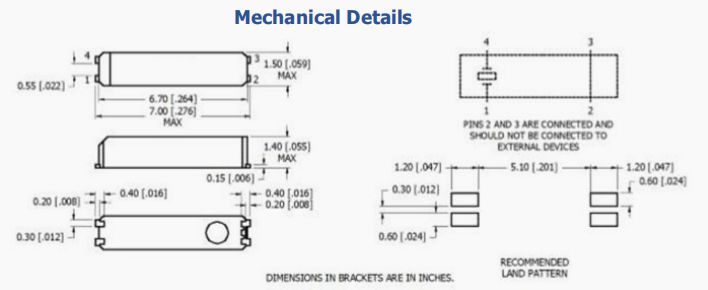

尺寸：7015mm

MMD音叉晶振,WC146SM進口7015晶振,WC146SMF-32.768KHZ-T智能計時器晶振,美國MMDCOMP晶振,WC146SM系列晶振，表晶，32.768KHz晶振，超小型晶振，電腦主板晶振，石英晶振，無源晶振，7015晶振，超小型晶振，音叉晶振，無...

分享到

MMD音叉晶振,WC146SM進口7015晶振,WC146SMF-32.768KHZ-T智能計時器晶振,美國MMDCOMP晶振,WC146SM系列晶振，WC146SMF-32.768KHZ-T晶振，表晶，32.768KHz晶振，超小型晶振，電腦主板晶振，石英晶振，無源晶振，7015晶振，超小型晶振，音叉晶振，無源晶振，貼片晶振，陶瓷晶振，液晶儀表盤晶振，進口晶振，歐美晶振，顯示器晶振，環保無鉛晶振,MMDCOMP晶振公司是一家全面服務的頻率控制設備制造商,專業給市場提供各種石英晶振,貼片晶振,有源晶振等產品。

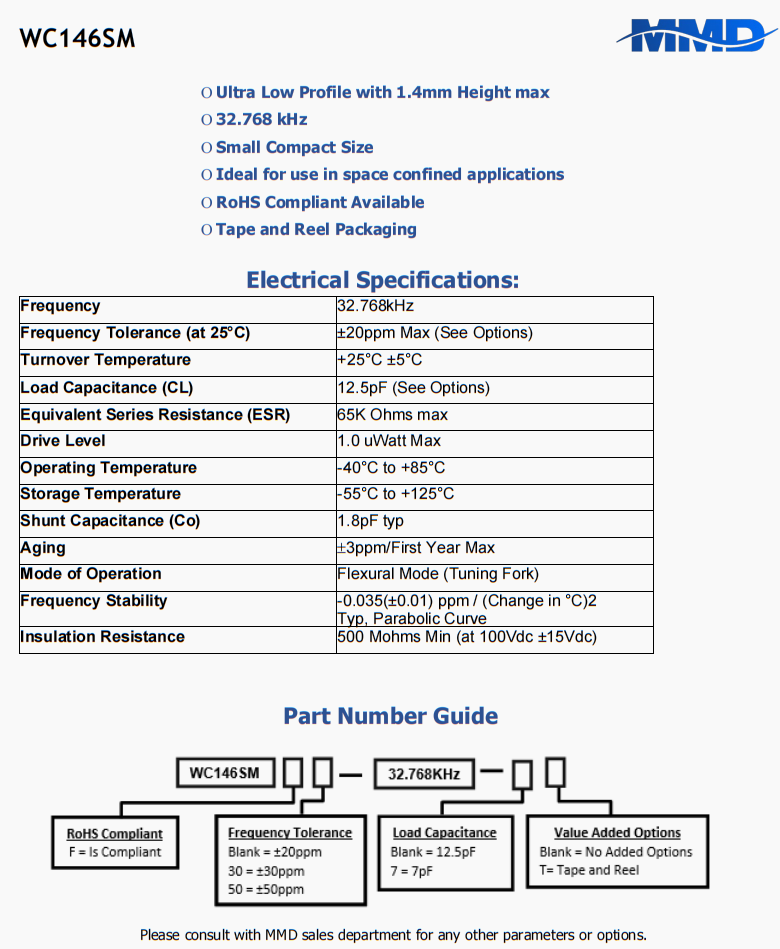

MMD音叉晶振,WC146SM進口7015晶振,WC146SMF-32.768KHZ-T智能計時器晶振

頻率	32.768kHz
頻率容差	±20ppm Max (See Options)
周轉溫度	+25°C ±5°C
負載電容	12.5pF (See Options)
等效串聯電阻	65K Ohms max
驅動電平	1.0 uWatt Max
工作溫度	-40°C to +85°C
儲存溫度	-55°C to +125°C
分流電容	1.8pF typ
老化	±3ppm/First Year Max
工作模式	Flexural Mode (Tuning Fork)
頻率穩定度	-0.035(±0.01) ppm / (Change in °C)2 Typ, Parabolic Curve
絕緣電阻	500 Mohms Min (at 100Vdc ±15Vdc)

MMD音叉晶振,WC146SM進口7015晶振,WC146SMF-32.768KHZ-T智能計時器晶振

編碼	品牌	型號	工作溫度	頻率	頻率穩定度	頻率容差	負載電容
DF10CC3-60.000MHZ-T	MMD	D	-40°C ~ 85°C	60 MHz	±30ppm	±15ppm	10 pF
DF18AA1-24.000MHZ-T	MMD	D	0°C ~ 70°C	24 MHz	±100ppm	±50ppm	18 pF
DF18BA1-14.31818MHZ-T	MMD	D	0°C ~ 70°C	14.31818 MHz	±50ppm	±30ppm	18 pF
DF18BA1-25.000MHZ-T	MMD	D	0°C ~ 70°C	25 MHz	±50ppm	±30ppm	18 pF
DF18BA1-27.000MHZ-T	MMD	D	0°C ~ 70°C	27 MHz	±50ppm	±30ppm	18 pF
DF18BB1-8.000MHZ-T	MMD	D	-20°C ~ 70°C	8 MHz	±50ppm	±30ppm	18 pF
DF18BC1-19.200MHZ-3T	MMD	D	-40°C ~ 85°C	19 MHz	±50ppm	±30ppm	18 pF
DF18CC1- 25.000MHZ-T	MMD	D	-40°C ~ 85°C	25 MHz	±30ppm	±15ppm	18 pF
DF18CC1-25.000MHZ	MMD	D	-40°C ~ 85°C	25 MHz	±30ppm	±15ppm	18 pF
DF20AA1-25.000MHZ-T	MMD	D	0°C ~ 70°C	25 MHz	±100ppm	±50ppm	20 pF
DF20AA1-3.6864MHZ-T	MMD	D	0°C ~ 70°C	3.6864 MHz	±100ppm	±50ppm	20 pF
DF20AA1-4.9152MHZ-T	MMD	D	0°C ~ 70°C	4.9152 MHz	±100ppm	±50ppm	20 pF
DF20AC1-10.000MHZ	MMD	D	-40°C ~ 85°C	10 MHz	±100ppm	±50ppm	20 pF
DF20AC1-11.0592MHZ-T	MMD	D	-40°C ~ 85°C	11.0592 MHz	±100ppm	±50ppm	20 pF
DF20AC1-14.7456MHZ-T	MMD	D	-40°C ~ 85°C	14.7456 MHz	±100ppm	±50ppm	20 pF
DF20AC1-25.000MHZ-T	MMD	D	-40°C ~ 85°C	25 MHz	±100ppm	±50ppm	20 pF
DF20AC1-3.6864MHZ-T	MMD	D	-40°C ~ 85°C	3.6864 MHz	±100ppm	±50ppm	20 pF
DF20BA1-13.500MHZ-T	MMD	D	0°C ~ 70°C	13.5 MHz	±50ppm	±30ppm	20 pF
DF20BA1-20.000MHZ-T	MMD	D	0°C ~ 70°C	20 MHz	±50ppm	±30ppm	20 pF
DF20BB1-25.000MHZ-T	MMD	D	-20°C ~ 70°C	25 MHz	±50ppm	±30ppm	20 pF
DF20CC1-3.6864MHZ-T	MMD	D	-40°C ~ 85°C	3.6864 MHz	±30ppm	±15ppm	20 pF
DF20EB1-20.000MHZ-T	MMD	D	-20°C ~ 70°C	20 MHz	±50ppm	±50ppm	20 pF
DF20EC1-20.000MHZ-T	MMD	D	-40°C ~ 85°C	20 MHz	±50ppm	±50ppm	20 pF
DF20EC1-6.000MHZ-T	MMD	D	-40°C ~ 85°C	6 MHz	±50ppm	±50ppm	20 pF
DF22AA1-13.560MHZ-T	MMD	D	0°C ~ 70°C	13.56 MHz	±100ppm	±50ppm	22 pF
DF32BB1-27.000MHZ-T	MMD	D	-20°C ~ 70°C	27 MHz	±50ppm	±30ppm	32 pF
DFSBB1-25.000MHZ-T	MMD	D	-20°C ~ 70°C	25 MHz	±50ppm	±30ppm
DSAA1-20.000MHZ	MMD	D	0°C ~ 70°C	20 MHz	±100ppm	±50ppm
FF10AC1-13.560MHZ-T	MMD	F	-40°C ~ 85°C	13.56 MHz	±100ppm	±50ppm	10 pF
FF18AA1-12.000MHZ-T	MMD	F	0°C ~ 70°C	12 MHz	±100ppm	±50ppm	18 pF
FF18EA1-14.7456MHZ-T	MMD	F	0°C ~ 70°C	14.7456 MHz	±50ppm	±50ppm	18 pF
FF20AC1-8.000MHZ-T	MMD	F	-40°C ~ 85°C	8 MHz	±100ppm	±50ppm	20 pF
FF30BC1-25.000MHZ	MMD	F	-40°C ~ 85°C	25 MHz	±50ppm	±30ppm	30 pF
FF40BI1-8.704MHZ-T	MMD	F	-40°C ~ 105°C	8.704 MHz	±50ppm	±30ppm	40 pF
MMC-473-110.76625MHZ	MMD	MMC	-55°C ~ 85°C	110.76625 MHz	±25ppm	±15ppm
MMC-474-100.0325MHZ	MMD	MMC	-55°C ~ 85°C	100.0325 MHz	±25ppm	±15ppm
T10GC1-26.000MHZ-T	MMD	T	-40°C ~ 85°C	26 MHz	±30ppm	±10ppm	10 pF
T12BC1-19.200MHZ-T	MMD	T	-40°C ~ 85°C	19.2 MHz	±50ppm	±30ppm	12 pF
T18BC1-13.000MHZ-T	MMD	T	-40°C ~ 85°C	13 MHz	±50ppm	±30ppm	18 pF
T18BD1-24.000MHZ-T	MMD	T	-10°C ~ 60°C	24 MHz	±50ppm	±30ppm	18 pF
WC146SMF-32.768KHZ-T	MMD	WC146SM	-40°C ~ 85°C	32.768 kHz		±20ppm	12.5 pF
WC26SMFC-32.768KHZ-T	MMD	WC26SM	-40°C ~ 85°C	32.768 kHz		±10ppm	12.5 pF
X20AB1-16.000MHZ-T	MMD	X	-20°C ~ 70°C	16 MHz	±100ppm	±50ppm	20 pF
