首頁歐美晶振 Renesas瑞薩晶振Renesas差分晶振,XLL726266.666000I,6G路由器晶振

Renesas差分晶振,XLL726266.666000I,6G路由器晶振

編號：78900821
頻率：266.666MHz
尺寸：7.0×5.0mm

Renesas晶振,XL差分晶振,XLL726266.666000I晶振,7050mm晶振,貼片石英晶體振蕩器,進口有源晶振,頻率266.666MHz,電壓2.5V,工作溫度-40~85°C,頻率穩定性50ppm,高可靠性晶振,低抖動晶振,6G路由器晶振,衛生保健應用晶振,消...

分享到

Renesas差分晶振,XLL726266.666000I,6G路由器晶振,Renesas晶振,XL差分晶振,XLL726266.666000I晶振,7050mm晶振,貼片石英晶體振蕩器,進口有源晶振,頻率266.666MHz,電壓2.5V,工作溫度-40~85°C,頻率穩定性50ppm,高可靠性晶振,低抖動晶振,6G路由器晶振,衛生保健應用晶振,消費電子產品晶振,物聯網晶振.

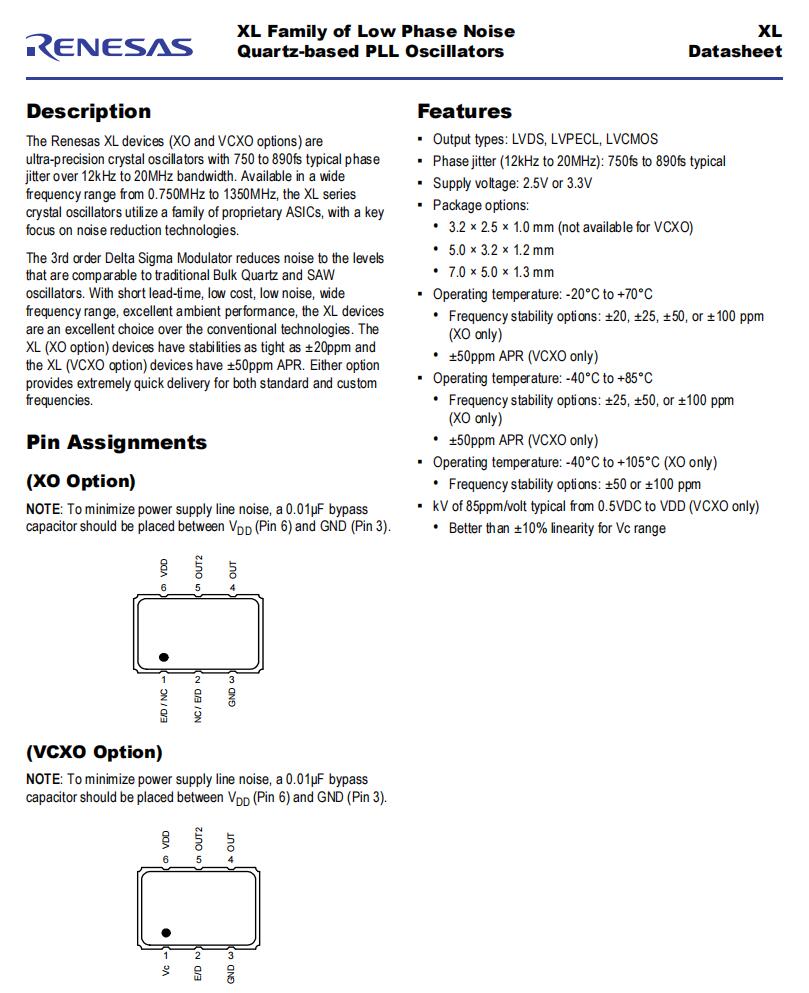

Renesas差分晶振,XLL726266.666000I,6G路由器晶振特點：

•輸出類型:LVDS, LVPECL, LVCMOS

•相位抖動(12kHz至20MHz): 750fs至890fs典型

•供電電壓:2.5V或3.3V

•包裝選項:

•3.2 × 2.5 × 1.0 mm (VCXO不可用)

•5.0 × 3.2 × 1.2毫米

•7.0 × 5.0 × 1.3 mm

•工作溫度:-20℃~ +70℃

•頻率穩定性選項:±20，±25，±50，或±100 ppm(僅XO)

•±50ppm APR(僅限VCXO)

•工作溫度:-40°C至+85°C

•頻率穩定性選項:±25，±50，或±100 ppm(僅XO)

•±50ppm APR(僅限VCXO)

•工作溫度:-40°C至+105°C(僅XO)

•頻率穩定性選項:±50或±100ppm

•kV 85ppm/伏，典型范圍從0.5VDC到VDD(僅限VCXO)

•Vc范圍線性度優于±10%

Renesas差分晶振,XLL726266.666000I,6G路由器晶振參數表

項目	符號	規格說明	條件
額定頻率	f_nom	266.666MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	2.5V±0.3V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率公差（標準）	f_tol	±50 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
供電電流	IDD	44mA Max	LVDS 40+MHz to 220MHz
差分輸出電壓	VOD	0.4V Max	VDD = 3.3V ±5%.
對稱性	SYM	47%~53%	At outputs crossing point
輸出負載	L_LVDS	100Ω	LVDS Differential.
輸入電壓	VIH	70%VDD Min	LVDS
輸入電壓	VIL	30%VDD Max	LVDS
上升下降時間	tr/tf	400ps Max	LVDS 20% to 80% Vpp
起始時間	t str	10ms Max	VDD達到最小指定水平后輸出有效時間
周期抖動	JPER	4ps Typ	LVDS
相位抖動	tpj	1040 fs Typ	12KHZ~20MHz
老化	f_aging	±3ppm/year	+25℃,第一年

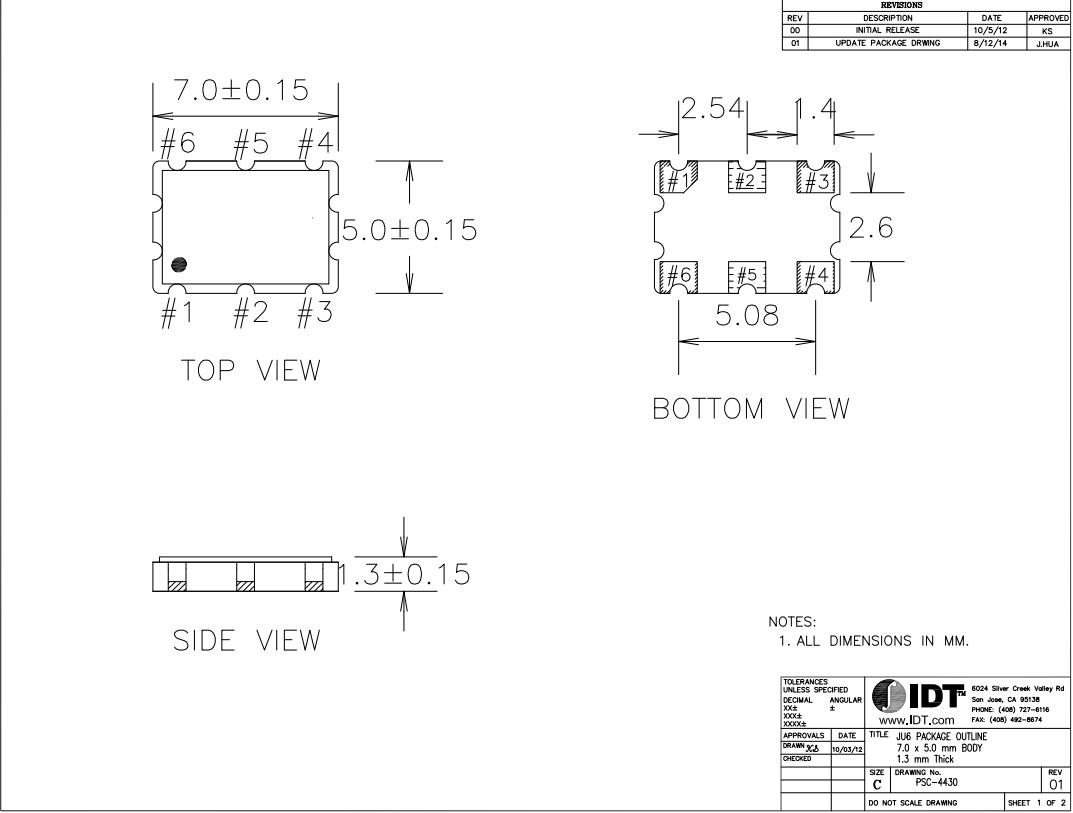

Renesas差分晶振,XLL726266.666000I,6G路由器晶振尺寸圖

原廠編碼	品牌	型號	頻率	輸出	電壓	頻率穩定性
XLL525212.500000I	Renesas Electronics America Inc	XL	212.5 MHz	LVDS	2.5V	±50ppm
XLH335050.000000K	Renesas Electronics America Inc	XL	50 MHz	HCMOS	3.3V	±50ppm
XLL330120.000000X	Renesas Electronics America Inc	XL	120 MHz	LVDS	3.3V	±100ppm
XLH335001.024000I	Renesas Electronics America Inc	XL	1.024 MHz	HCMOS	3.3V	±50ppm
XLL325040.000000I	Renesas Electronics America Inc	XL	40 MHz	LVDS	2.5V	±50ppm
XLL530108.000000I	Renesas Electronics America Inc	XL	108 MHz	LVDS	3.3V	±100ppm
XLL338C50.000000X	Renesas Electronics America Inc	XL	1.25 GHz	LVDS	3.3V	±100ppm
XLH335016.625000I	Renesas Electronics America Inc	XL	16.625 MHz	HCMOS	3.3V	±50ppm
XLH736040.000000I	Renesas Electronics America Inc	XL	40 MHz	HCMOS	3.3V	±25ppm
XLH330012.000000I	Renesas Electronics America Inc	XL	12 MHz	HCMOS	3.3V	±100ppm
XLL335125.000000I	Renesas Electronics America Inc	XL	125 MHz	LVDS	3.3V	±50ppm
XLH335001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	3.3V	±50ppm
XLH330016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	3.3V	±100ppm
XLH325020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	2.5V	±50ppm
XLH526020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	2.5V	±25ppm
XLH725027.000000I	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±50ppm
XLH336050.000000X	Renesas Electronics America Inc	XL	50 MHz	HCMOS	3.3V	±25ppm
XLH336012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	3.3V	±25ppm
XLH335050.000JX4I	Renesas Electronics America Inc	XL	50 MHz	LVCMOS	3.3V	±50ppm
XLH335025.000JX4I	Renesas Electronics America Inc	XL	25 MHz	LVCMOS	3.3V	±50ppm
XLH735024.576JU4X	Renesas Electronics America Inc	XL	24.576 MHz	LVCMOS	3.3V	±50ppm
XLH735012.000JU4X	Renesas Electronics America Inc	XL	12 MHz	LVCMOS	3.3V	±50ppm
XLH336024.000000I	Renesas Electronics America Inc	XL	24 MHz	HCMOS	3.3V	±25ppm
XLH526040.000000I	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±25ppm
XLH336020.000000I	Renesas Electronics America Inc	XL	20 MHz	HCMOS	3.3V	±25ppm
XLH526012.000000I	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±25ppm
XLH336050.000000I	Renesas Electronics America Inc	XL	50 MHz	HCMOS	3.3V	±25ppm
XLH336016.000000I	Renesas Electronics America Inc	XL	16 MHz	HCMOS	3.3V	±25ppm
XLH336012.000000I	Renesas Electronics America Inc	XL	12 MHz	HCMOS	3.3V	±25ppm
XLH536016.000JS4I	Renesas Electronics America Inc	XL	16 MHz	LVCMOS	3.3V	±25ppm
XLH736025.000JU4I	Renesas Electronics America Inc	XL	25 MHz	LVCMOS	3.3V	±25ppm
XLH736012.000JU4I	Renesas Electronics America Inc	XL	12 MHz	LVCMOS	3.3V	±25ppm
XLH526030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	2.5V	±25ppm
XLH526027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±25ppm
XLH526026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	2.5V	±25ppm
XLH520012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±100ppm
XLH720026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	2.5V	±100ppm
XLH520026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	2.5V	±100ppm
XLH320027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±100ppm
XLH520030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	2.5V	±100ppm
XLH720016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±100ppm
XLH520025.000000X	Renesas Electronics America Inc	XL	25 MHz	HCMOS	2.5V	±100ppm
XLH320030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	2.5V	±100ppm
XLH320033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	HCMOS	2.5V	±100ppm
XLH520050.000000X	Renesas Electronics America Inc	XL	50 MHz	HCMOS	2.5V	±100ppm
XLH725020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	2.5V	±50ppm
XLH526024.000000X	Renesas Electronics America Inc	XL	24 MHz	HCMOS	2.5V	±25ppm
XLH520016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±100ppm
XLH525024.000000X	Renesas Electronics America Inc	XL	24 MHz	HCMOS	2.5V	±50ppm
XLH330048.000000X	Renesas Electronics America Inc	XL	48 MHz	HCMOS	3.3V	±100ppm
XLH320012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±100ppm
XLH525030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	2.5V	±50ppm
XLH520048.000000X	Renesas Electronics America Inc	XL	48 MHz	HCMOS	2.5V	±100ppm
XLH520040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±100ppm
XLH720040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±100ppm
XLH725012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±50ppm
XLH725024.000000X	Renesas Electronics America Inc	XL	24 MHz	HCMOS	2.5V	±50ppm
XLH720050.000000X	Renesas Electronics America Inc	XL	50 MHz	HCMOS	2.5V	±100ppm
XLH525012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±50ppm
XLH325024.000000X	Renesas Electronics America Inc	XL	24 MHz	HCMOS	2.5V	±50ppm
XLH526050.000000X	Renesas Electronics America Inc	XL	50 MHz	HCMOS	2.5V	±25ppm
XLH525010.000000X	Renesas Electronics America Inc	XL	10 MHz	HCMOS	2.5V	±50ppm
XLH720030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	2.5V	±100ppm
XLH320026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	2.5V	±100ppm
XLH525001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	2.5V	±50ppm
XLH526016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±25ppm
XLH526040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±25ppm
XLH335016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	3.3V	±50ppm
XLH320016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±100ppm
XLH330030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	3.3V	±100ppm
XLH325012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±50ppm
XLH526033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	HCMOS	2.5V	±25ppm
XLH720048.000000X	Renesas Electronics America Inc	XL	48 MHz	HCMOS	2.5V	±100ppm
XLH320040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±100ppm
XLH325026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	2.5V	±50ppm
XLH725040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±50ppm
XLH520027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±100ppm
XLH520024.000000X	Renesas Electronics America Inc	XL	24 MHz	HCMOS	2.5V	±100ppm
XLH320050.000000X	Renesas Electronics America Inc	XL	50 MHz	HCMOS	2.5V	±100ppm
XLH325048.000000X	Renesas Electronics America Inc	XL	48 MHz	HCMOS	2.5V	±50ppm
XLH525020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	2.5V	±50ppm
XLH320020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	2.5V	±100ppm
XLH725027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±50ppm
XLH325016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±50ppm
XLH320024.000000X	Renesas Electronics America Inc	XL	24 MHz	HCMOS	2.5V	±100ppm
XLH525040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±50ppm
XLH325027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±50ppm
XLH520020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	2.5V	±100ppm
XLH525027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±50ppm
XLH520033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	HCMOS	2.5V	±100ppm
XLH330026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	3.3V	±100ppm
XLH720027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	2.5V	±100ppm
XLH526012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	2.5V	±25ppm
XLH725016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±50ppm
XLH525033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	HCMOS	2.5V	±50ppm
XLH525016.000000X	Renesas Electronics America Inc	XL	16 MHz	HCMOS	2.5V	±50ppm
XLH330012.000000X	Renesas Electronics America Inc	XL	12 MHz	HCMOS	3.3V	±100ppm
XLH526010.000000X	Renesas Electronics America Inc	XL	10 MHz	HCMOS	2.5V	±25ppm
XLH526001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	2.5V	±25ppm
XLH330033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	HCMOS	3.3V	±100ppm
XLH330027.000000X	Renesas Electronics America Inc	XL	27 MHz	HCMOS	3.3V	±100ppm
XLH325010.000000X	Renesas Electronics America Inc	XL	10 MHz	HCMOS	2.5V	±50ppm
XLH330020.000000X	Renesas Electronics America Inc	XL	20 MHz	HCMOS	3.3V	±100ppm
XLH725010.000000X	Renesas Electronics America Inc	XL	10 MHz	HCMOS	2.5V	±50ppm
XLH725001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	2.5V	±50ppm
XLH525026.000000X	Renesas Electronics America Inc	XL	26 MHz	HCMOS	2.5V	±50ppm
XLH320048.000000X	Renesas Electronics America Inc	XL	48 MHz	HCMOS	2.5V	±100ppm
XLH325040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±50ppm
XLH525048.000000X	Renesas Electronics America Inc	XL	48 MHz	HCMOS	2.5V	±50ppm
XLH530030.000000X	Renesas Electronics America Inc	XL	30 MHz	HCMOS	3.3V	±100ppm
XLH330040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	3.3V	±100ppm
XLH330010.000000X	Renesas Electronics America Inc	XL	10 MHz	HCMOS	3.3V	±100ppm
XLH325001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	2.5V	±50ppm
XLH720001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	2.5V	±100ppm
XLH520001.000000X	Renesas Electronics America Inc	XL	1 MHz	HCMOS	2.5V	±100ppm
XLH320010.000000X	Renesas Electronics America Inc	XL	10 MHz	HCMOS	2.5V	±100ppm
XLH530033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	HCMOS	3.3V	±100ppm
XLH726033.000000I	Renesas Electronics America Inc	XL	33 MHz	HCMOS	2.5V	±25ppm
XLH726060.000000I	Renesas Electronics America Inc	XL	60 MHz	HCMOS	2.5V	±25ppm
XLH336022.118400I	Renesas Electronics America Inc	XL	22.1184 MHz	HCMOS	3.3V	±25ppm
XLH726026.214400I	Renesas Electronics America Inc	XL	26.2144 MHz	HCMOS	2.5V	±25ppm
XLH736038.000000I	Renesas Electronics America Inc	XL	38 MHz	HCMOS	3.3V	±25ppm
XLH536148.511000X	Renesas Electronics America Inc	XL	148.511 MHz	HCMOS	3.3V	±25ppm
XLH736026.214400I	Renesas Electronics America Inc	XL	26.2144 MHz	HCMOS	3.3V	±25ppm
XLH736028.000000I	Renesas Electronics America Inc	XL	28 MHz	HCMOS	3.3V	±25ppm
XLH736033.554400I	Renesas Electronics America Inc	XL	33.5544 MHz	HCMOS	3.3V	±25ppm
XLH326002.000000I	Renesas Electronics America Inc	XL	2 MHz	HCMOS	2.5V	±25ppm
XLH536121.500000I	Renesas Electronics America Inc	XL	121.5 MHz	HCMOS	3.3V	±25ppm
XLH726026.563828I	Renesas Electronics America Inc	XL	26.563828 MHz	HCMOS	2.5V	±25ppm
XLH736034.368000I	Renesas Electronics America Inc	XL	34.368 MHz	HCMOS	3.3V	±25ppm
XLH536110.000000I	Renesas Electronics America Inc	XL	110 MHz	HCMOS	3.3V	±25ppm
XLH736039.950000I	Renesas Electronics America Inc	XL	39.95 MHz	HCMOS	3.3V	±25ppm
XLH330148.500000I	Renesas Electronics America Inc	XL	148.5 MHz	HCMOS	3.3V	±100ppm
XLH736027.540000I	Renesas Electronics America Inc	XL	27.54 MHz	HCMOS	3.3V	±25ppm
XLH726026.561172I	Renesas Electronics America Inc	XL	26.561172 MHz	HCMOS	2.5V	±25ppm
XLH736028.450560I	Renesas Electronics America Inc	XL	28.45056 MHz	HCMOS	3.3V	±25ppm
XLH336024.545455I	Renesas Electronics America Inc	XL	24.545455 MHz	HCMOS	3.3V	±25ppm
XLH738092.500000X	Renesas Electronics America Inc	XL	92.5 MHz	HCMOS	3.3V	±20ppm
XLH736048.839200I	Renesas Electronics America Inc	XL	48.8392 MHz	HCMOS	3.3V	±25ppm
XLH736090.136800I	Renesas Electronics America Inc	XL	90.1368 MHz	HCMOS	3.3V	±25ppm
XLH736028.375000I	Renesas Electronics America Inc	XL	28.375 MHz	HCMOS	3.3V	±25ppm
XLH328019.200000X	Renesas Electronics America Inc	XL	19.2 MHz	HCMOS	2.5V	±20ppm
XLH528040.000000X	Renesas Electronics America Inc	XL	40 MHz	HCMOS	2.5V	±20ppm
XLH526080.000000I	Renesas Electronics America Inc	XL	80 MHz	HCMOS	2.5V	±25ppm
XLH738078.643200X	Renesas Electronics America Inc	XL	78.6432 MHz	HCMOS	3.3V	±20ppm
XLH726096.000000I	Renesas Electronics America Inc	XL	96 MHz	HCMOS	2.5V	±25ppm
XLH728080.000000X	Renesas Electronics America Inc	XL	80 MHz	HCMOS	2.5V	±20ppm
XLH738000.921600X	Renesas Electronics America Inc	XL	921.6 kHz	HCMOS	3.3V	±20ppm
XLH336029.500000I	Renesas Electronics America Inc	XL	29.5 MHz	HCMOS	3.3V	±25ppm
XLH735015.360000I	Renesas Electronics America Inc	XL	15.36 MHz	HCMOS	3.3V	±50ppm
XLH736045.000000X	Renesas Electronics America Inc	XL	45 MHz	HCMOS	3.3V	±25ppm
XLH336013.330000I	Renesas Electronics America Inc	XL	13.33 MHz	LVCMOS	3.3V	±25ppm
XLH336037.125000I	Renesas Electronics America Inc	XL	37.125 MHz	LVCMOS	3.3V	±25ppm
XLH336002.048000I	Renesas Electronics America Inc	XL	2.048 MHz	LVCMOS	3.3V	±25ppm
XLH336032.051655I	Renesas Electronics America Inc	XL	32.051655 MHz	LVCMOS	3.3V	±25ppm
XLH328033.333000X	Renesas Electronics America Inc	XL	33.333 MHz	LVCMOS	2.5V	±20ppm
XLH336033.330000I	Renesas Electronics America Inc	XL	33.33 MHz	LVCMOS	3.3V	±25ppm
XLH336031.948512I	Renesas Electronics America Inc	XL	31.948512 MHz	LVCMOS	3.3V	±25ppm
XLH336019.000000I	Renesas Electronics America Inc	XL	19 MHz	LVCMOS	3.3V	±25ppm
XLH730030.875520I	Renesas Electronics America Inc	XL	30.87552 MHz	LVCMOS	3.3V	±100ppm
XLH535003.686000I	Renesas Electronics America Inc	XL	3.686 MHz	LVCMOS	3.3V	±50ppm
XLH736078.125000X	Renesas Electronics America Inc	XL	78.125 MHz	LVCMOS	3.3V	±25ppm
XLH736025.750000X	Renesas Electronics America Inc	XL	25.75 MHz	LVCMOS	3.3V	±25ppm
XLH535013.330000I	Renesas Electronics America Inc	XL	13.33 MHz	LVCMOS	3.3V	±50ppm
XLH338040.953873X	Renesas Electronics America Inc	XL	40.953873 MHz	LVCMOS	3.3V	±20ppm
XLH300000.000000K	Renesas Electronics America Inc	XL	-	HCMOS	-	±100ppm
XLH335006.005284K	Renesas Electronics America Inc	XL	6.005284 MHz	HCMOS	3.3V	±50ppm
XLH528031.250000X	Renesas Electronics America Inc	XL	31.25 MHz	LVCMOS	2.5V	±20ppm
XLH526031.250000I	Renesas Electronics America Inc	XL	31.25 MHz	LVCMOS	2.5V	±25ppm

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受到專業的銷售團隊,耐心為您解答任何疑問,讓您的
前所未有的后顧無憂. 消費得到保障.
3.質量保證，誠信為上 4.提升業績,降低成本
我司以“以科技為動力，以質量求生存”為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
