首頁進口晶振精工晶體Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm

編號：65935383
頻率：32.768KHz
尺寸：2.0x1.2mm

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,20ppm,超小型晶振,SC-20S，日本進口SEIKO晶振，型號SC-20S，編碼Q-SC20S03220C5AAAF石英晶振，是一款小體積晶振尺寸2.0x1.2mm兩腳貼片晶振，32.768KHz晶振，負載12.5pF，20...

分享到

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm,超小型晶振,SC-20S，日本進口SEIKO晶振，型號SC-20S，編碼Q-SC20S03220C5AAAF石英晶振，是一款小體積晶振尺寸2.0x1.2mm兩腳貼片晶振，32.768KHz晶振，負載12.5pF，±20ppm，無源晶振，石英晶體諧振器，無鉛環保晶振，石英晶振，SMD晶振，具有超小型，輕薄型，耐沖擊性，耐熱性強，耐熱及耐環境特點，被廣泛用于智能手機、可穿戴設備、無線藍牙模塊、電腦主板，鐘表電子，儀器儀表，智能手表，消費產品，數碼電子，各種微機子時鐘等。

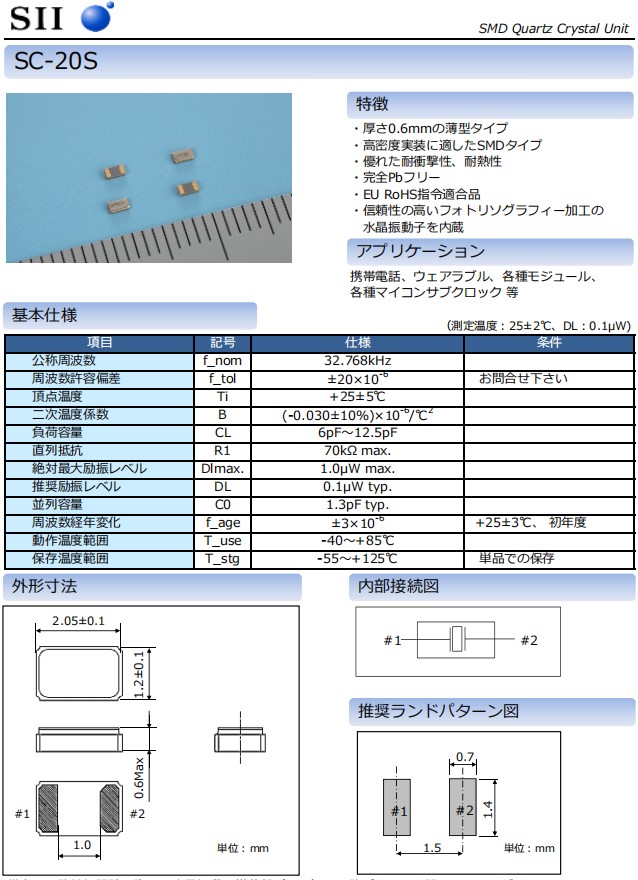

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm,超小型晶振,SC-20S 參數圖

公稱周波數	_nom	32 .768kHz
周波數許容偏差	f_tol	±20×10-6
頂點溫度	Ti	+25±5℃
二次溫度保數	B	(-0 .030±10%)×10-6/℃2
負荷容量	CL	6pF~12 .5pF
直列抵抗	R1	70kΩ max .
絕對最大激勵水平	Dlmax .	1 .0μW max .
推薦激勵水平	DL	0 . 1μW typ .
並列容量	C0	1 .3pF typ .
周波數經年變化	f_age	±3×10-6
動作溫度範函	T_use	-40~+85℃
保存溫度範函	T_stg	-55~+125℃

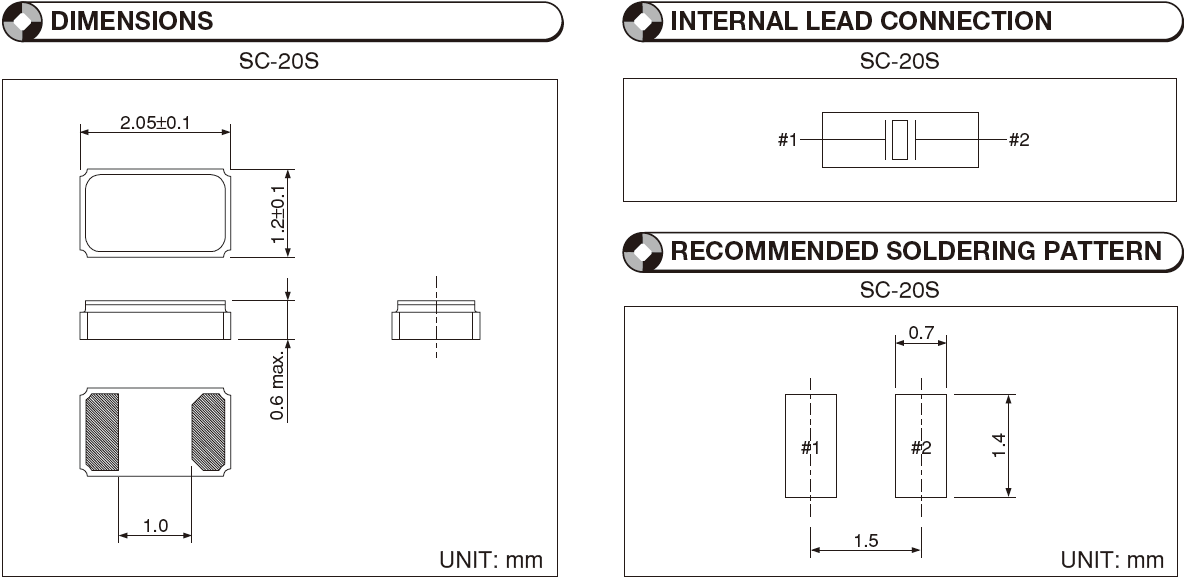

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm,超小型晶振,SC-20S 尺寸圖

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm,超小型晶振,SC-20S
特征：
超薄型0.6mm厚度
SMD型高和耐沖擊性，耐熱性強
完全無Pb（8 RoHS合件，
內置可靠的光刻石英振子

原廠編碼	晶振廠家	型號	頻率	頻率穩定度	負載電容
Q-SC16S03220C5AAAF	Seiko晶振	SC-16S	32.768kHz	±20ppm	12.5pF
Q-SC16S03210C5AAAF	Seiko晶振	SC-16S	32.768kHz	±10ppm	12.5pF
Q-SC16S03205C5AAAF	Seiko晶振	SC-16S	32.768kHz	±5ppm	12.5pF
Q-SC16S0322070CAAF	Seiko晶振	SC-16S	32.768kHz	±20ppm	7pF
Q-SC16S0321070CAFF	Seiko晶振	SC-16S	32.768kHz	±10ppm	7pF
Q-SC16S0320570CADF	Seiko晶振	SC-16S	32.768kHz	±5ppm	7pF
Q-SC20S0322070CAAF	Seiko晶振	SC-20S	32.768kHz	±20ppm	7pF
Q-SC20S0321070CAFF	Seiko晶振	SC-20S	32.768kHz	±10ppm	7pF
Q-SC20S0320570CADF	Seiko晶振	SC-20S	32.768kHz	±5ppm	7pF
Q-SC20S03220C5AAAF	Seiko晶振	SC-20S	32.768kHz	±20ppm	12.5pF
Q-SC20S03210C5AAAF	Seiko晶振	SC-20S	32.768kHz	±10ppm	12.5pF
Q-SC20S03205C5AAAF	Seiko晶振	SC-20S	32.768kHz	±5ppm	12.5pF
Q-SC32S03220C5AAE	Seiko晶振	SC-32S	32.768kHz	±20ppm	12.5pF
Q-SC32S03210C5AFE	Seiko晶振	SC-32S	32.768kHz	±10ppm	12.5pF
Q-SC32S03205C5ADE	Seiko晶振	SC-32S	32.768kHz	±5ppm	12.5pF
Q-SC32S0320570CADF	Seiko晶振	SC-32S	32.768kHz	±5ppm	7pF
Q-SC32S0321070CAAF	Seiko晶振	SC-32S	32.768kHz	±10ppm	7pF
Q-SC32S0322070AAAF	Seiko晶振	SC-32S	32.768kHz	±20ppm	7pF
Q-SC32S03220C5AAAF	Seiko晶振	SC-32S	32.768kHz	±20ppm	12.5pF
Q-SC32S03210C5AAFF	Seiko晶振	SC-32S	32.768kHz	±10ppm	12.5pF
Q-SC32S03205C5AADF	Seiko晶振	SC-32S	32.768kHz	±5ppm	12.5pF
Q-SPT2S0327620C5DJ	Seiko晶振	SP-T2A-F	32.768kHz	±20ppm	12.5pF
Q-SPT7P032762070FF	Seiko晶振	SSP-T7-F	32.768kHz	±20ppm	7pF
Q-SPT7P032761070FF	Seiko晶振	SSP-T7-F	32.768kHz	±10ppm	7pF
Q-SPT7P032760570FF	Seiko晶振	SSP-T7-F	32.768kHz	±5ppm	7pF
Q-SPT7P0327620C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±20ppm	12.5pF
Q-SPT7P0327610C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±10ppm	12.5pF
Q-SPT7P0327605C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±5ppm	12.5pF
VT200F-6PF20PPM	Seiko晶振	VT-200-F	32.768kHz	-	6pF
VT200F-12.5PF20PPM	Seiko晶振	VT-200-F	32.768kHz	-	12.5pF

Q-SC20S03220C5AAAF,32.768KHz,2012,12.5pF,±20ppm,超小型晶振,SC-20S， 32.768K系列產品本身具有體積小,厚度薄,重量輕等特點,此音叉型石英晶體諧振器,晶振產品本身具備優良的耐熱性,耐環境特性,在辦公自動化,家電領域,移動通信領域可發揮優良的電氣特性,符合無鉛標準,滿足無鉛焊接的回流溫度曲線要求,金屬外殼的石英晶振使得產品在封裝時能發揮比陶瓷晶振外殼更好的耐沖擊性能.
