Taiwan NSK Characteristics of Crystal

來源：http://www.ntlitai.cn 作者：康華爾電子 2016年04月07
     NSK, founded in 1916, the company philosophy is to promote the health and safety of the society, to protect the global environment through its innovative technology integration and control. Our vision guided us NSK as a truly international enterprise, is across national boundaries and improve the relationship between the people from all over the world. NSK aimed at in a sustainable way to improve the enterprise value to realize the social responsibility and implement appropriate profitability as a company.
Piezoelectric effect of Quartz Crystal
    The quartz crystal has a character when the pressure is applied to the direction of the crystal axis, the electric change generates on the quartz crystal plate, and on the contrary, when the electricity is applied to the quartz crystal plate, the distortion occurs inside the crystal plate. So, that’s why we called it’s the piezoelectric effect of quartz crystal.

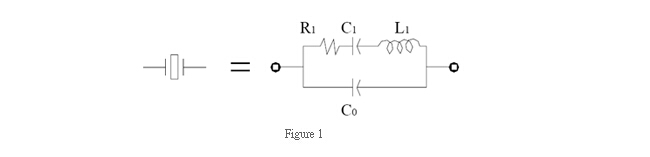

Equivalent Circuit of Crystal
     The equivalent circuit of a quartz crystal is shown to explain the basic elements governing the crystal characteristics and performance. It consists of a motional capacitance Cl, inductance Ll, series resistance Rl, and a shunted capacitance C0. The first three parameters are known as the "motional parameters" of the quartz crystal element. See Fig. 1
Series Resonance
     When a crystal is operating at series resonance (Fs), it looks resistive in the circuit. Thus, impedance at Fs is near zero. In a well design series resonant circuit, correlation is not a problem and load capacitance does not have to be specified. See Fig. 2

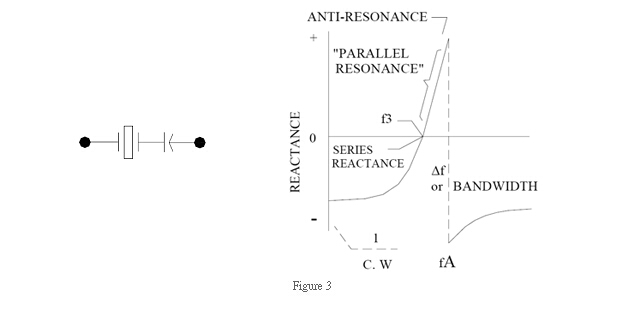

Parallel Resonance
     When a crystal is operating at parallel resonance (Fs<Fl<Fa), it looks inductive in the circuit. Thus, function of a load capacitance is very important in selecting the stable point of oscillation. In parallel circuit design, load capacitance CL shall be specified. See Fig. 3
     Konuaer electronic is Taiwan NSK designated authorized agent, since its inception it adheres to the management idea of people text, NSK agents in 2004 honor to become, for mainland customers with home furnishings, above is konuaer electronics share to everyone of all kinds of technical data, more specification for each product, welcome to inquire to buy.
