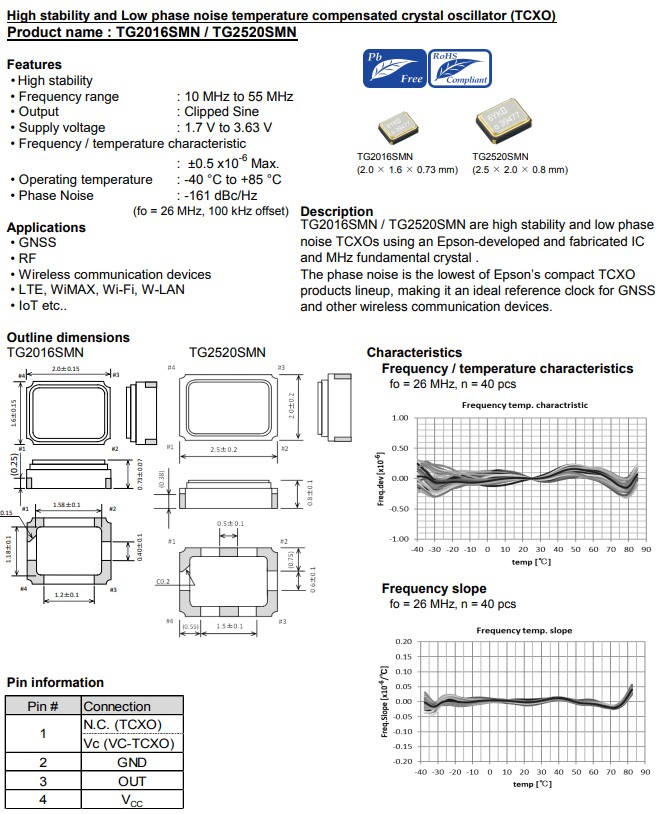

日本進口愛普生晶振TG2520SMN，高穩定性和低相位噪聲溫度補償晶體振蕩器，超小型尺寸2.5x2.0mm四腳貼片晶振，TCXO晶振，有源晶振，是高穩定性低相位噪聲，使用愛普生開發和制造的IC的噪聲TCXOs和MHz基頻晶體。相位噪聲是愛普生緊湊型TCXO溫補晶振中最低的產品系列，使其成為GNSS的理想參考時鐘和其他無線通信設備。特征：高穩定性，頻率范圍:10MHz至55MHz，輸出:削波正弦，電源電壓:1.7V至3.63V，頻率/溫度特性 :最大0.5 x10-6，工作溫度:-40攝氏度至+85攝氏度，相位噪聲:-161 dBc/Hz(fo = 26 MHz，100 kHz偏移)，應用于：GNSS 射頻，無線通信設備，LTE、WiMAX、Wi-Fi、無線局域網，物聯網等.
TG2520SMN高穩定性和低相位噪聲溫度補償晶體振蕩器,X1G005421020427,溫補晶振

Product Number	Model	Frequency	愛普生晶振	Output Wave	Supply Voltage
X1G005421002927	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V
X1G005421003027	TG2520SMN	12.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V
X1G005421003727	TG2520SMN	16.384000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421003827	TG2520SMN	16.384000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.260 to 3.465 V
X1G005421020127	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020227	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020327	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020427	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020527	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020627	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020727	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421020827	TG2520SMN	16.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421021127	TG2520SMN	20.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421021227	TG2520SMN	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V

X1G005421021327	TG2520SMN	25.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421021427	TG2520SMN	27.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421021527	TG2520SMN	30.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421021627	TG2520SMN	48.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421022027	TG2520SMN	52.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421022127	TG2520SMN	27.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421022227	TG2520SMN	50.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G005421030127	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G005421030227	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G005421030327	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G005421030427	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G005421030527	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G005421030627	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G005421030727	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V

TG2520SMN高穩定性和低相位噪聲溫度補償晶體振蕩器,X1G005421020427,溫補晶振
有源晶振需要電源，但不需要附加的電容。它內部含有起振器。通常接到CPU的一根引腳即可，有源晶振不需要DSP的內部振蕩器,信號質量好,比較穩定,而且連接方式相對簡單(主要是做好電源濾波,通常使用一個電容和電感構成的PI型濾波網絡,輸出端用一個小阻值的電阻過濾信號即可),不需要復雜的配置電路.有源晶振通常的用法:一腳懸空,二腳接地,三腳接輸出,四腳接電壓。
