Lisle, IL – CTS Corporation (NYSE: CTS) announces three new low jitter clock oscillators added to its family of low noise differential devices offering High-Speed Current Steering Logic [HCSL] output.  HCSL outputs are found in high-speed bus architectures like PCI Express [PCIe] interfaces and high definition video applications primarily supported by Intel and Nvidia chipsets.
西迪斯設計出獨特性能的小型化時鐘振蕩器647H16M3I3T，Lisle, IL - CTS公司(NYSE: CTS)宣布三種新的低抖動時鐘晶體振蕩器加入其低噪聲差動器件家族，提供高速電流轉向邏輯[HCSL]輸出。HCSL輸出出現在高速總線架構中，如PCI Express [PCIe]接口和高清視頻應用程序，主要由英特爾和英偉達芯片組支持。

CTS Models 643H, 645H and 647H offer stability options of ±20, ±25, ±30, ±50 and ±100ppm, input voltages at +2.5V or +3.3V and typical phase jitter performance of <500fs.  Along with standard commercial and industrial temperature range options, these new models also support the extended range of -40°C to +105°C for fan-less applications. Standard product features, common market applications and new series platforms are summarized below.  Please refer to individual data sheets on the CTS website to view more performance characteristics.
CTS型號643H, 645H和647H提供±20，±25，±30，±50和±100ppm的穩定性選項，輸入電壓在+2.5V或+3.3V和<500fs的典型相位抖動性能。除了標準的商業和工業溫度范圍選項，這些新型號還支持?jǐn)U展范圍-40°C到+105°C的無風扇應用。現將標準進口晶振產品特點、常見市場應用及新系列平臺概述如下。請參閱CTS網站上的個別數據表，以查看更多的性能特征。西迪斯設計出獨特性能的小型化時鐘振蕩器647H16M3I3T

625L3I014M31818	CTS-Frequency Controls	625	14.31818MHz	±50ppm
625L3I014M31818	CTS-Frequency Controls	625	14.31818MHz	±50ppm
625L3I016M00000	CTS-Frequency Controls	625	16MHz	±50ppm
625L3I016M00000	CTS-Frequency Controls	625	16MHz	±50ppm
625L3I016M00000	CTS-Frequency Controls	625	16MHz	±50ppm
625M3I024M00000	CTS-Frequency Controls	625	24MHz	±50ppm
625M3I024M00000	CTS-Frequency Controls	625	24MHz	±50ppm
625M3I024M00000	CTS-Frequency Controls	625	24MHz	±50ppm
625L3I010M00000	CTS-Frequency Controls	625	10MHz	±50ppm
625L3I010M00000	CTS-Frequency Controls	625	10MHz	±50ppm
625L3I010M00000	CTS-Frequency Controls	625	10MHz	±50ppm
625L3I007M37280	CTS-Frequency Controls	625	7.3728MHz	±50ppm
625L3I007M37280	CTS-Frequency Controls	625	7.3728MHz	±50ppm
625L3I007M37280	CTS-Frequency Controls	625	7.3728MHz	±50ppm
625L3C024M57600	CTS-Frequency Controls	625	24.576MHz	±50ppm
625L3C024M57600	CTS-Frequency Controls	625	24.576MHz	±50ppm
625L3C024M57600	CTS-Frequency Controls	625	24.576MHz	±50ppm
625L3I030M00000	CTS-Frequency Controls	625	30MHz	±50ppm
625L3I030M00000	CTS-Frequency Controls	625	30MHz	±50ppm
625L3I030M00000	CTS晶振	625	30MHz	±50ppm
625L3C024M00000	CTS-Frequency Controls	625	24MHz	±50ppm
625L3C024M00000	CTS-Frequency Controls	625	24MHz	±50ppm
625L3C024M00000	CTS-Frequency Controls	625	24MHz	±50ppm
625M3I027M00000	CTS-Frequency Controls	625	27MHz	±50ppm
625M3I027M00000	CTS-Frequency Controls	625	27MHz	±50ppm

Product Features
基本或第三泛音晶體
低相位抖動性能
小型陶瓷表面安裝包
- 7.0mmx5.0mm - 5.0mmx3.2mm - 3.2mmx2.5mm
+2.5V或+3.3V操作
允許輸出標準
磁帶和卷筒包裝
可用的常用頻率[輸出和包相關]
- 25.00兆赫
- 106.25 mhz - 27.00MHz
- 125.00 mhz - 50.00MHz
- 155.52 mhz - 100.00MHz
- 156.25兆赫
市場應用
PCI Express(作為PCIe)
數據存儲系統
以太網線卡
系列ATA快遞
英特爾和英偉達芯片組
網絡服務器
交換機和路由器
機頂盒/ dvr
描述描述
CTS型號647H是一款低成本、高性能的時鐘有源晶體振蕩器，支持HCSL輸出。采用最新集成電路M647H具有良好的穩定性和低相位抖動性能。

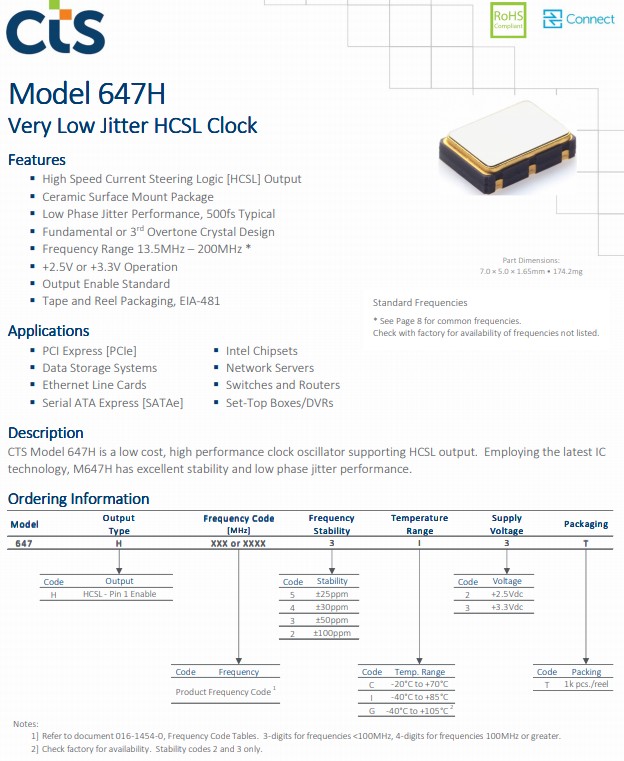

647H型非常低JitterHCSLClock
功能特性
高速電流轉向邏輯輸出
陶瓷表面安裝組件
低相位抖動性能，500fs典型
基本或第三泛音水晶設計
頻率范圍13.5MHz - 200MHz *
+2.5V或+3.3V操作
允許輸出標準
卷帶包裝，EIA-481
應用程序
PCI Express(作為PCIe)
數據存儲系統
以太網線卡
系列ATA快遞
英特爾芯片組
網絡服務器
交換機和路由器,機頂盒/ dvr
